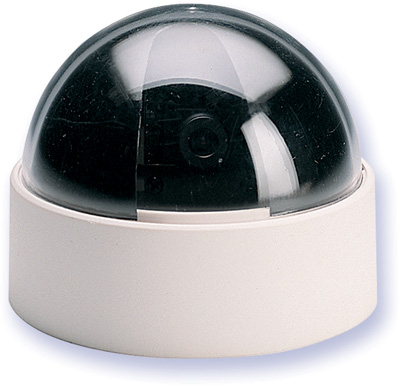

15-CD35

COLOR CCD DOME CAMERA



Call  Toll FREE @ 1-800-441-1110 for latest quote!
Or send an email to hitechunlimited@yahoo.com
(please specify product and include your contact information)


SPECIFICATIONS

Type: Color Signal Format: PAL/NTSC Image Pick-Up Device: 1/3" DSP CCD Image Sensor
Picture Elements: 512(H) x 492 (V), NTSC/EIA
512(H) x 582 (V) PAL/CCIR
Resolution: 330 Horizontal TV Lines
Mini Illumination: 1.0 Lux/ f2.0
Horiz. Sync. Frequency: NTSC/EIA 15,734KHz, CCIR/PAL 15,625KHz
Vertical Frequency:60 Hz - CCIR/PAL 50 Hz
Clock Frequency: NTSC 28.636 MHz, PAL 28.5 MHz
Scanning System: Interlace 2:1
S/N Ratio: More than 46dB
Electronic Shutter: Up to 1/10,000sec.
Lens: 3.6mm / f2.0
White Balance: Auto Tracing
Back Light Compensation: NO
Auto Gain Control: NO
Gamma: 0.45
Video Output: 1 Vp-p, 75 Ohms
Power Supply: 12 VDC (+/- 0.5V)
Power Consumption: 200mA
Dimensions: H86mm, D106mm
Weight: 150g.
Fixation: Screws (3)
Storage Temperature: -30?to 60°C
Operating Temperature: -10?to 45°C



Hi-Tech Unlimited does not sell Covert, Pinhole or "Hidden" Cameras with audio.
