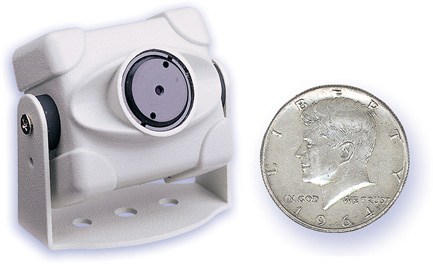

15-CG26N

ULTRA MINI DSP COLOR CAMERA PIN HOLE



Call  Toll FREE @ 1-800-441-1110 for latest quote!
Or send an email to hitechunlimited@yahoo.com
(please specify product and include your contact information)


SPECIFICATIONS

Type: Color Image Pick-Up Device: 1/4" CCD Image Sensor
Picture Elements: 512(H) x 492 (V), NTSC/EIA
512(H) x 582 (V) PAL/CCIR
Resolution: 330 Horizontal TV Lines
Mini Illumination: 2 Lux
Horiz. Sync. Frequency: NTSC/EIA 15,734KHz, CCIR/PAL 15,625KHz
Vertical Frequency: NTSC/EIA 60Hz, CCIR/PAL 50Hz
Clock Frequency: NTSC/EIA 19.0699MHz, CCIR/PAL 18.9375MHz
Scanning System: Interlace 2:1
S/N Ratio: More than 46dB
Electronic Shutter: 1 to 1/96,000sec. Linear
Lens: Pinhole 4.3mm / f2.8
Video Output: 1 Vp-p, 75 Ohms
Audio Output: NO
Gamma: 0.45
Dimensions: W38mm, H36mm, D17mm
Weight: 58g.
Power Supply: 12 VDC (+/- 0.5V)
Power Consumption: 140mA
Storage Temperature: -30 to 60C
Operating Temperature: -10 to 45C



Hi-Tech Unlimited does not sell Covert, Pinhole or "Hidden" Cameras with audio.
