15-CH22B

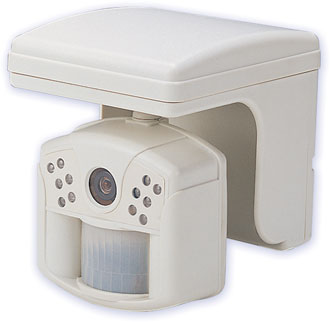

B/W CAMERA IN WATERPROOF PIR CASE




SPECIFICATIONS

Type: Monochrome Image Pick-Up Device: 1/3" CCD Image Sensor (Interline)
Picture Elements: 512(H) x 492 (V), NTSC/EIA
512(H) x 582 (V) PAL/CCIR
Resolution: 380 Horizontal TV Lines
Mini Illumination: 0.1 Lux
Horiz. Sync. Frequency: NTSC/EIA 15,734KHz, CCIR/PAL 15,625KHz
Vertical Frequency: NTSC/EIA 60Hz, CCIR/PAL 50Hz
Clock Frequency: NTSC/EIA 19.0699MHz, CCIR/PAL 18.9375MHz
Scanning System: Interlace 2:1
S/N Ratio: More than 46dB
Electronic Shutter: 1 to 1/100,000sec. Linear
Lens: 3.6mm / f2.0
Video Output: 1 Vp-p, 75 Ohms
Gamma: 0.45
IR LED: 12 PCE
PIR Sensor: NO
Pules Counter: NO
Contact Alarm: NO
Dimensions: W105mm, H126mm, D122mm
Weight: 210g.
Power Supply: 12 VDC
Power Consumption: 240mA
Storage Temperature: -30?to 60C
Operating Temperature: -10?to 45C



Hi-Tech Unlimited does not sell Covert, Pinhole or "Hidden" Cameras with audio.
