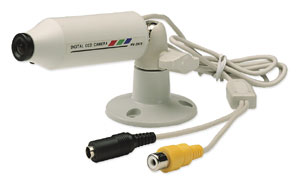

15-CM25

CCD COLOR FINGER CAMERA WATERPROOF



SPECIFICATIONS

Type: Color Image Pick-Up Device: 1/4" CCD Image Sensor
Picture Elements: 512(H) x 492 (V), NTSC/EIA
512(H) x 582 (V) PAL/CCIR
Resolution: 330 Horizontal TV Lines
Mini Illumination: 1 Lux/ f2.0
Horiz. Sync. Frequency: NTSC/EIA 15,734KHz, CCIR/PAL 15,625KHz
Vertical Frequency: 60 Hz - CCIR/PAL 50 Hz
Clock Frequency: NTSC 19.0699 MHz, PAL 18.9375 MHz
Scanning System: Interlace 2:1
S/N Ratio: More than 46dB
Electronic Shutter:
EIA/NTSC 1/60~1/100,000sec.
CCIR/PAL 1/50~1/100,000sec.
Lens: Pinhole 3.7mm
Audio Output: NO
Gamma: 0.45
Dimensions: D?5, L?0mm
Weight: 72g.
Video Output: 1 Vp-p, 75 Ohms
Power Supply: 12 VDC (+/- 0.5V)
Power Consumption: 100mA
Housing (Black or Silver): Aluminum, Waterproof
Cable: Standartd 50cm 3P Wire
Storage Temperature: -30 to 60C
Operating Temperature: -10 to 45C

$321.00

Hi-Tech Unlimited does not sell Covert, Pinhole or "Hidden" Cameras with audio.
