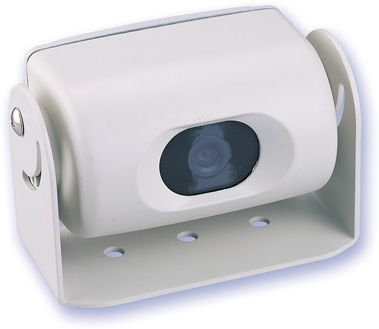

15-CW30

B/W VIDEO CAMERA
WATERPROOF TYPE




SPECIFICATIONS

Type: 1/3" Monochrome Sensor
Picture Elements: 512(H) x 492 (V), NTSC/EIA
512(H) x 582 (V) PAL/CCIR
Resolution: 380 Horizontal TV Lines
Mini Illumination: 0.1 Lux
Horiz. Sync. Frequency: NTSC/EIA 15,734KHz, CCIR/PAL 15,625KHz
Vertical Frequency: 60 Hz - CCIR/PAL 50 Hz
Clock Frequency: NTSC 19.0699 MHz, PAL 18.9375 MHz
Scanning System: Interlace 2:1
S/N Ratio: More than 46dB
Electronic Shutter: Up to 1/10000 sec.
Lens: 3.6mm f2.0
Video Output: 1 Vp-p, 75 Ohms
Audio Output: NO
Gamma: 0.45
Dimensions: W97mm x H66mm x D80mm
Weight: (Enquire)
Power Supply: 12 VDC
Power Consumption: 170mA
Storage Temperature: -30 to 60C
Operating Temperature: -10 to 45C

Hi-Tech Unlimited does not sell Covert, Pinhole or "Hidden" Cameras with audio.
