15-BC65P

DSP COLOR BOARD CAMERA 42 x 42 PIN HOLE


Call  Toll FREE @ 1-800-441-1110 for latest quote!
Or send an email to hitechunlimited@yahoo.com
(please specify product and include your contact information)

SPECIFICATIONS
Specifications subject to change without notice.

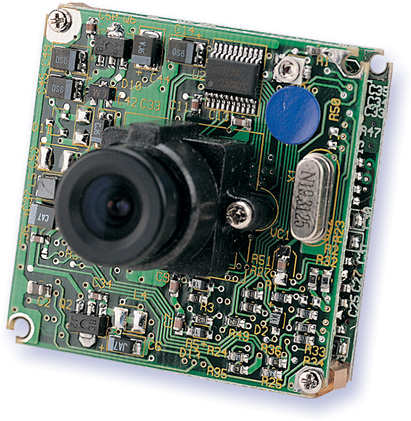

Image for illustration purpose - pinhole not shown

Image Pick-Up Device: 1/3" CCD Image Sensor
Picture Elements: 512(H) x 492 (V), NTSC/EIA
512(H) x 582 (V) PAL/CCIR
Resolution: 330 Horizontal TV Lines
Mini Illumination: 1 Lux
Horiz. Sync. Frequency: NTSC/EIA 15,734KHz, CCIR/PAL 15,625KHz
Vertical Frequency: 60 Hz - CCIR/PAL 50 Hz
Clock Frequency: NTSC 19.0699 MHz, PAL 18.9375 MHz
Scanning System: Interlace 2:1
Video Output: 1 Vp-p, 75 Ohms
Audio Output: NO
S/N Ratio: More than 46dB
Electronic Shutter: Up to 1/100,000 sec.
Lens: Pinhole 5.5mm/f3.5
White Balance: Auto Tracing
Back Light Compensation: NO
Auto Gain Control: Auto Tracing
Gamma: 0.45
Dimensions: H42mm x V42mm
PCB: 2
Power Supply: 12 VDC (+/- 0.5V)
Power Consumption: 240mA
Storage Temperature: -30 to 60°C
Operating Temperature: -10 to 45°C



Hi-Tech Unlimited does not sell Covert, Pinhole or "Hidden" Cameras with audio.
